Fixings

COMBI PLATES

The combi plate is an economical way of achieving greater areal coverage to improve effectiveness of support in fractured ground.

‍

• Easy to handle due to lower mass
• Provides improved surface contact for more confinement of the rock
• Increased area coverage, resulting in more effective support in fractured ground

‍

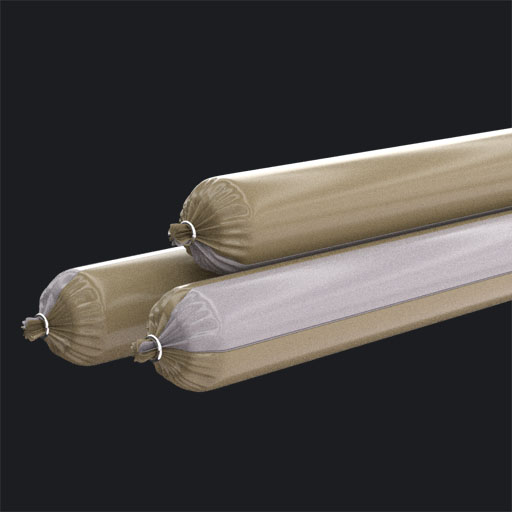

RESIN CAPSULES

The resin capsule is used in anchoring systems manufactured for use with tendon based support systems.

‍

• Heat sealed tube of polyester film
• Contains a resin and catalyst
• Available in sizes 21mm to 35mm
• Set times from 15 seconds to 10 minutes

‍

TORQUE INDICATORS

Used with an expansion shell on the threaded end, the Eye bolt is used for suspension of cables, piping, etc. Available in 2 standard sizes.

‍

• Torque indicators can be used on 16, 18, 20 and 25mm anchor bolts
• Torque indicators are installed between nut and washer
• Indicate a correctly installed bolt

‍

EYE BOLTS

Used with an expansion shell on the threaded end, the Eye bolt is used for suspension of cables, piping, etc. Available in 2 standard sizes.

‍

• Easy installation
• Increased thread for maximum tension
• M16 Thread
• No Special tools are needed
